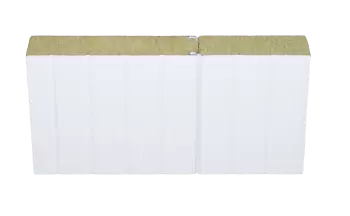

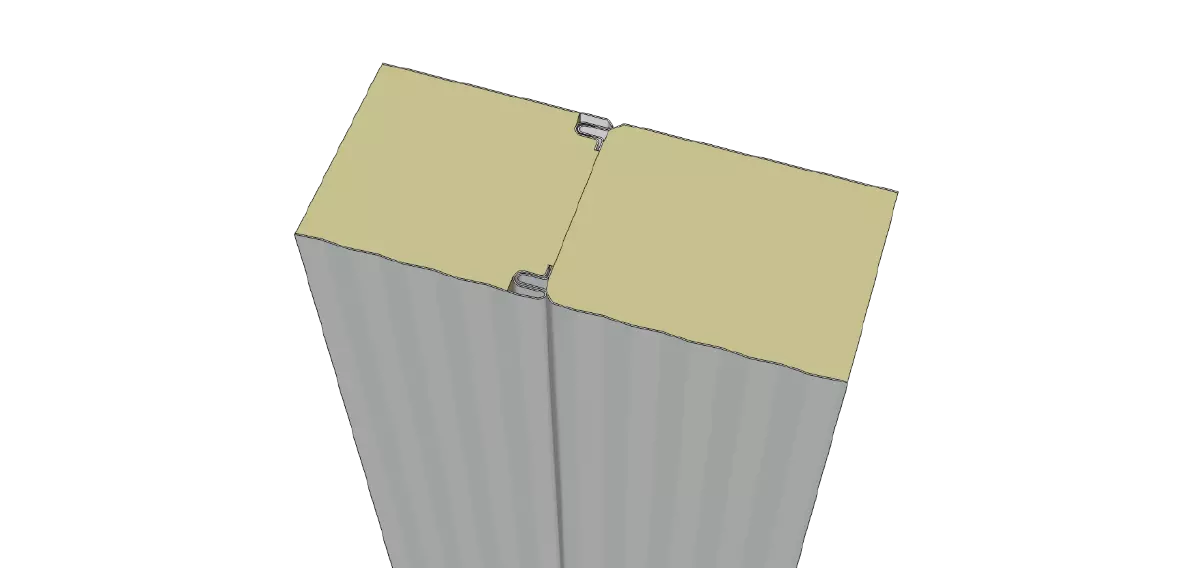

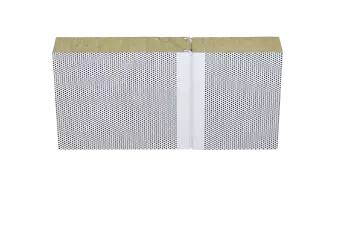

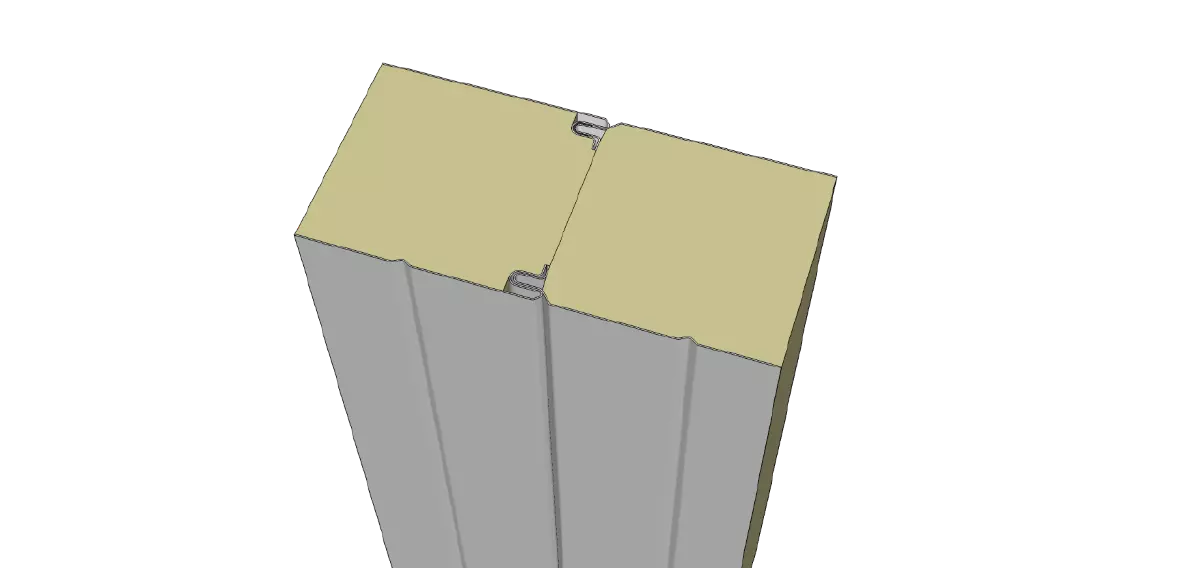

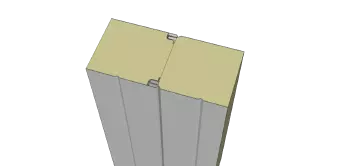

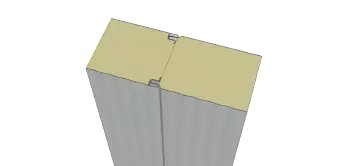

HIPERTEC WALL SOUND

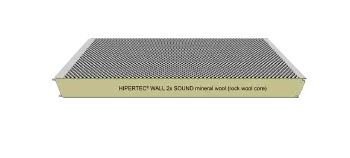

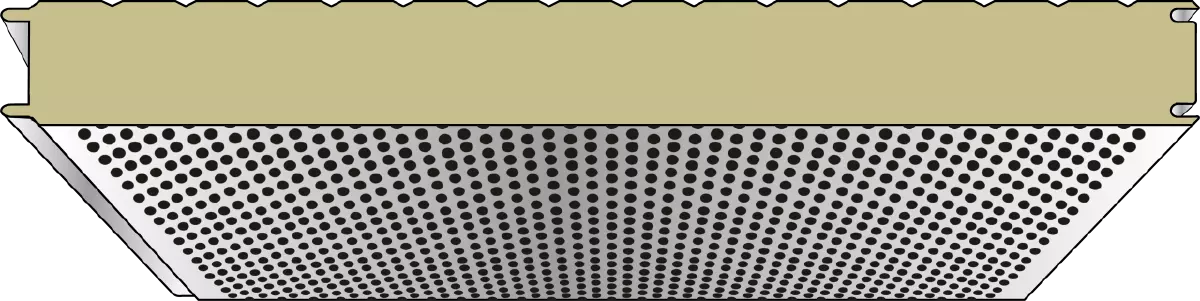

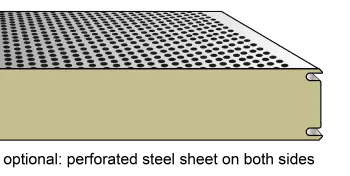

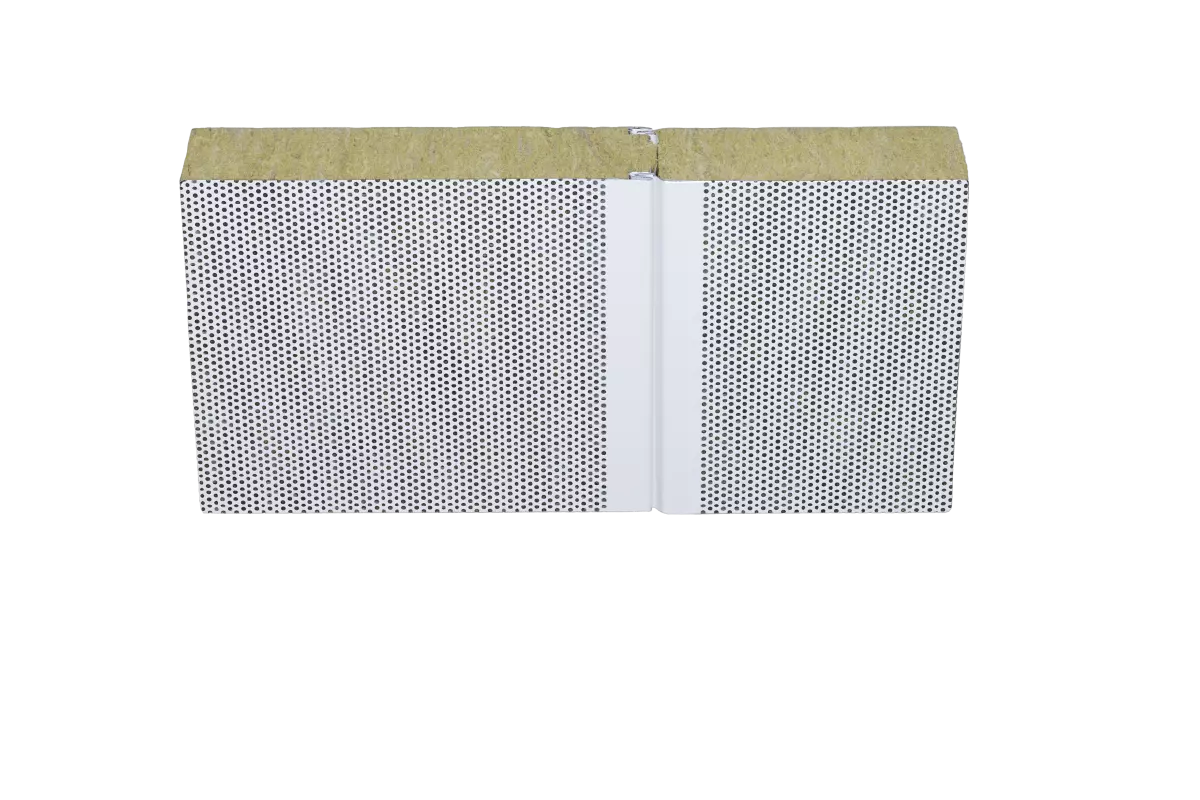

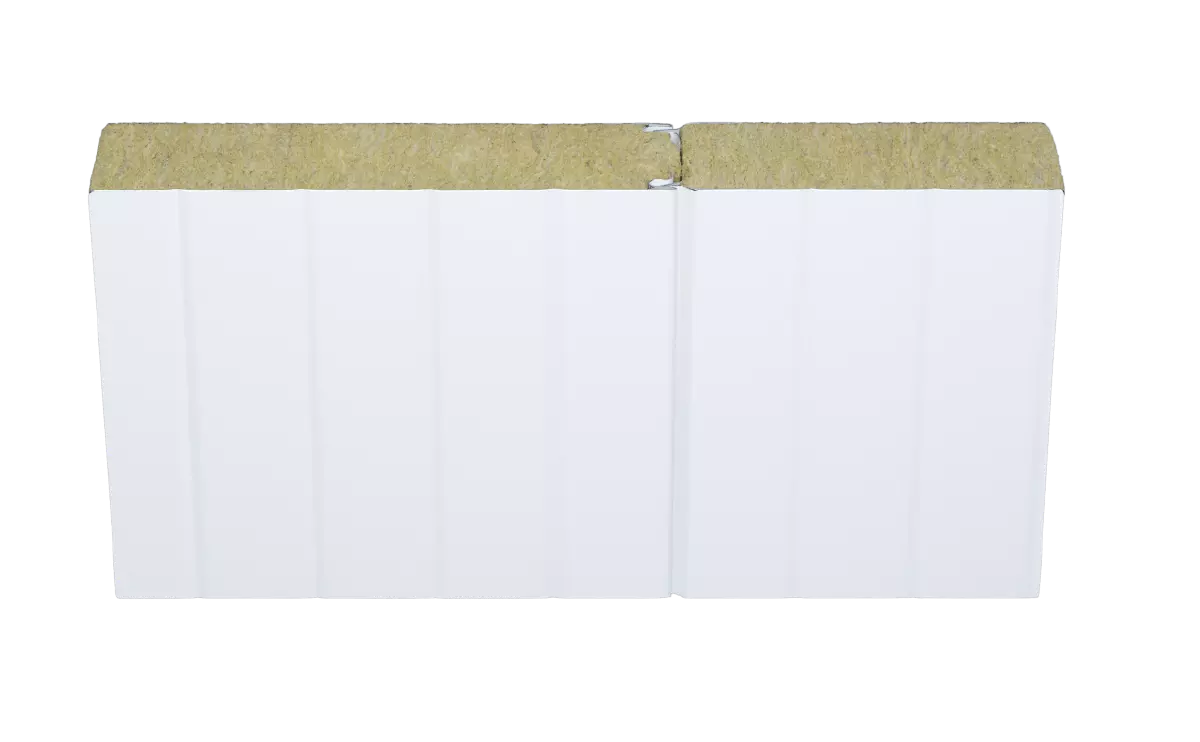

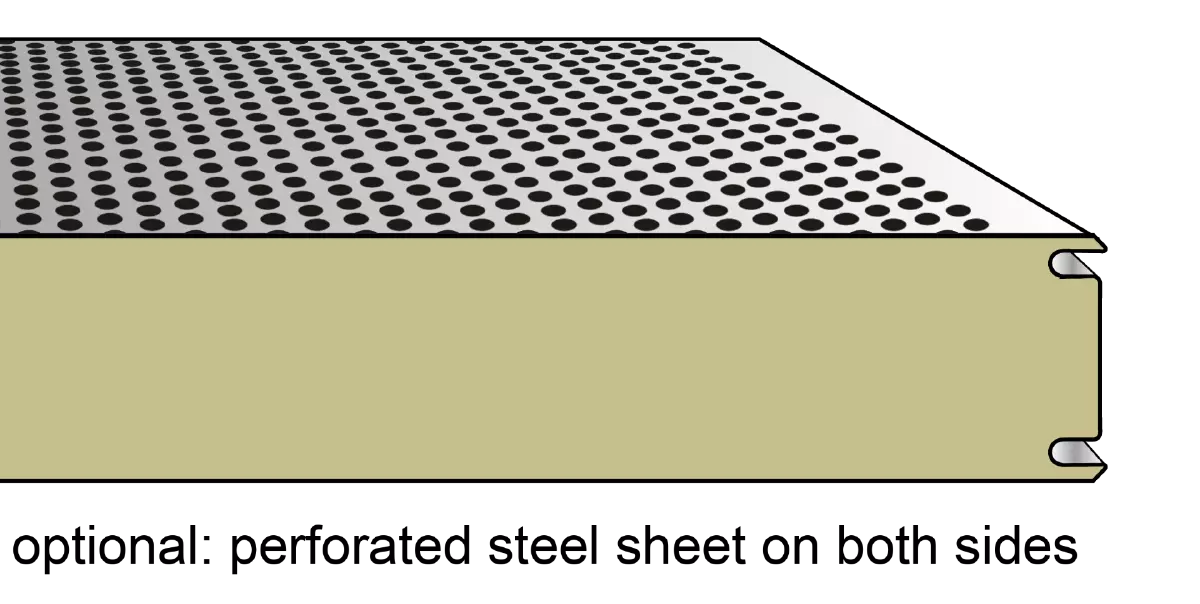

Hipertec® Wall Sound is a sandwich panel with an insulation core of mineral wool and steel cover sheets, the internal sheet being perforated. This panel is perfectly apt for buildings with high requirements on sound insulation and sound absorption. The design of the internal sheet improves room acoustics substantially. This system (patented by Metecno) uses a special fleece material as trickle protection between the internal sheet and the mineral wool core.
Generally being used as a ceiling or partition wall, Hipertec® Wall Sound may also be used as an external wall in specific cases, though it is generally not recommended to apply this panel in heated buildings or buildings with high moisture.
For additional information, please have a look at our detailed technical manual.
weiterlesen >>| Element name | Element thickness | Outer shell | Inner cover shell | weight | Thermal resistance | Heat transfer coefficient (Ψ - Joint factor) | |
|---|---|---|---|---|---|---|---|
| s | tN | tN | kg / m² | R | U without Ψ | U with Ψ | |
| mm | mm | mm | kg / m² | m² K / W | W / m² K | W / m² K | |
| HIPERTEC WALL SOUND | 60 | 0,60 | 0,60 | 15,3 | 1,34 | 0,711 | 0,731 |
| 80 | 0,60 | 0,60 | 17,5 | 1,79 | 0,537 | 0,548 | |
| 100 | 0,60 | 0,60 | 19,5 | 2,25 | 0,432 | 0,438 | |
| 120 | 0,60 | 0,60 | 21,9 | 2,70 | 0,361 | 0,365 | |
| 150 | 0,60 | 0,60 | 25,2 | 3,38 | 0,290 | 0,292 | |
| 200 | 0,60 | 0,60 | 30,7 | 4,52 | 0,218 | 0,219 | |
| 240 | 0,60 | 0,60 | 35,1 | 5,42 | 0,182 | 0,183 | |
Reaction to Fire
Thermal Conductivity
The insulation values are regularly monitored by external bodies and may be applied without any further reduction.

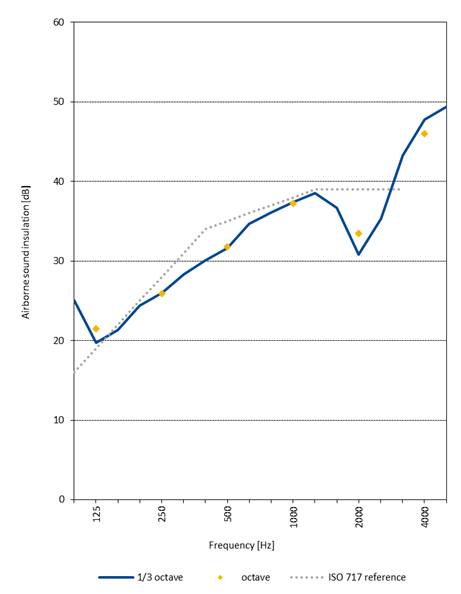

Sound Insulation
Rw ≥ 35 dB
| Freq. [Hz] | R [dB] ? oct. | R [dB] oct. |
| 125 | 25,0 19,7 21,3 | 21,5 |
| 250 | 24,4 26,0 28,3 | 26,0 |
| 500 | 30,1 31,6 34,7 | 31,7 |
| 1000 | 36,1 37,4 38,5 | 37,2 |
| 2000 | 36,7 30,8 35,3 | 33,5 |
| 4000 | 43,3 47,8 49,4 | 46,0 |
Sound Absorption
Rw ≥ 34 - 36 dB
| Freq. [Hz] | α ? oct. | α oct. |
| 125 | 0,39 0,64 0,67 | 0,57 |
| 250 | 0,65 0,83 0,84 | 0,77 |
| 500 | 0,89 0,85 0,92 | 0,89 |
| 1000 | 0,95 0,96 0,95 | 0,95 |
| 2000 | 0,94 0,98 0,98 | 0,97 |
| 4000 | 0,97 0,94 0,93 | 0,95 |
Corrosion protection
- Standard version with external steel sheet: 25 μm Polyester
- Tested according to DIN EN 10169: External sheet: Class RC3
Standard lengths
> 2,00 m up to 25,00 m, greater lengths on request.

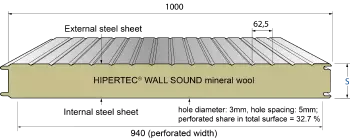

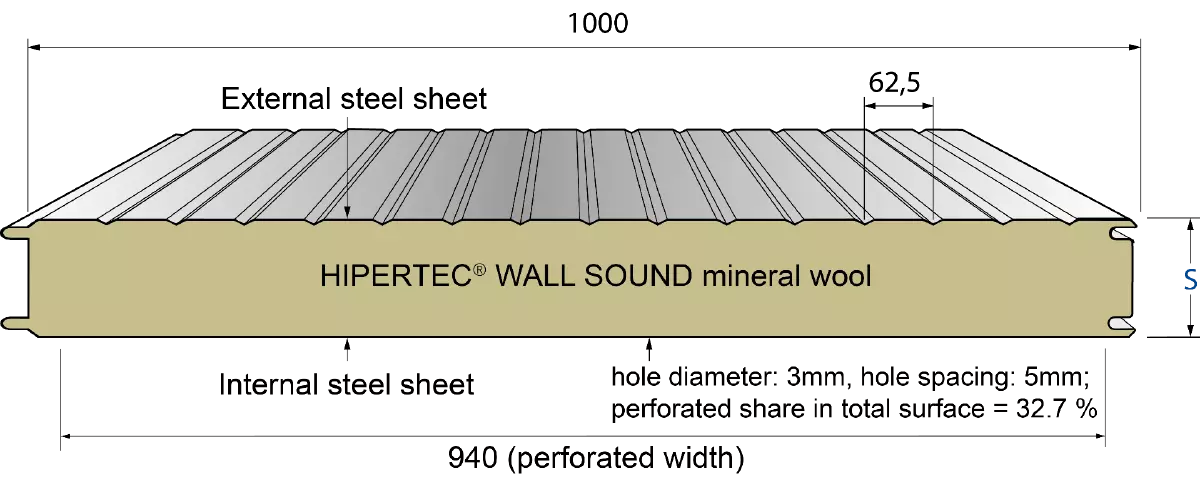

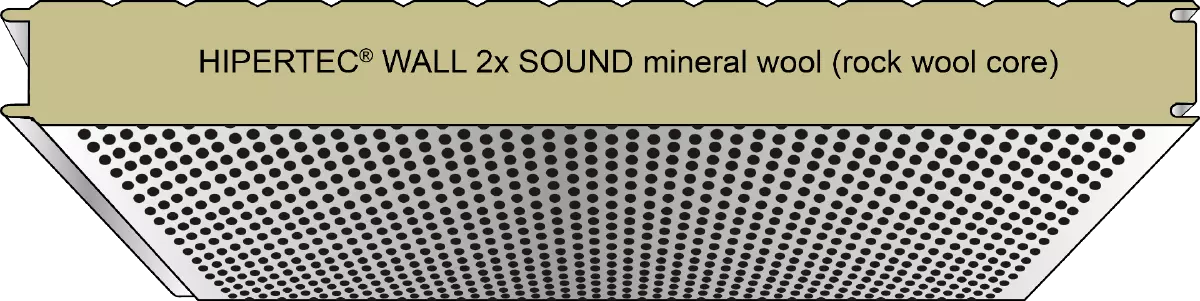

Types of profiles
External/internal sheet
STANDARD COATING FOR EXTERNAL APPLICATION
25μm POLYESTER
Corrosivity category RC3 in accordance with DIN EN 10169:2010-2
UV resistance category RUV2 in accordance with DIN EN 10169:2010-2
Temperature exposure -20° to 80°C
The well-proven polyester-coating is a modern and costeffective coating system, adapting well to different colour finishes. Polyester-coatings show good corrosion- and weather resistance under normal conditions for industrial application within the Central European region, which makes it the most frequently used coating system.
STANDARD COATING FOR INTERNAL APPLICATION
15 μm DU-POLYESTER
Corrosivity category RC2 in accordance with DIN EN 10169:2010-2
Temperature exposure -20° to 80°C
The polyester-thin-coating (standard colour shade similar to MC 9002) is suitable for conventional industrial buildings for indoor application in rooms with normal room climate and normal relative humidity. The colour shade may not be uniform due to the coating thickness.
25 μm OR 35 μm PVDF (POLYVINYLIDENFLUORIDE) - On request
Corrosivity category RC3 (25 μm) or RC4 (35 μm) in accordance with DIN EN 10169:2010-2
UV resistance category RUV4 in accordance with DIN EN 10169:2010-2
Temperature exposure -20° to 110°C
This coating shows optimal resistance against UV-radiation and weather and has good ductility. lt is suited particularly well for high requirements on the colour finish and has been found to be excellent in regions with difficult climatic conditions (e.g., 5-15 km from the sea).
Our recommendation for outdoors (indoors)
50 μm POLYAMIDE MODIFIED POLYURETHANE (PUR-PA) - On request
Corrosivity category RC5 in accordance with DIN EN
10169:2010-2
UV resistance category RUV4 in accordance with DIN EN
10169:2010-2
Temperature exposure -20° to 80°C
By using polyamide this coating system reaches a high surface hardness. lts visibly grained structure is particularly resistant to abrasion and ensures efficient protection against mechanical damage. lt is also widely resistant to strain by animals such as poultry, making it ideally apt for agricultural application. The flexibility and excellent resistance to UV radiation make this coating also suitable for outdoor installation.
Please also have a look at our Guideline for the Selection of Coating Systems.
Materials
Optional version
Thickness of steel sheets
External steel sheet 0,60 mm (optional: 0,50 mm / 0,75 mm)
External sheets provided with removable protective foil, panel-packages wrapped with banded plastic foil to protect from soiling. Also, package weights of max. 2,5 t or 1,5 t are available on request.
Container shipment
On request, we provide container packaging apt for oversea shipping. The panels will be stored in containers of 20 feet (6,096 m) or 40 feet (12,192 m), including an unloading system for easy unloading of the packages at their destination.
Number of panels per packaging unit
Core thickness Number *
Way of Packaging
- THERMOWALL KOMBI
- HIPERTEC WALL
- METFIBER ECO WALL
- Product catalog hipertec wall sound
- Guideline for selecting the proper coating system
- Metcolor coating systems
- Accessories service
- Pilaster strips 110 and 160
- Check list for a structural analysis of Wall Panels
- General installation instructions
- Span table Hipertec Wall Sound
- General notes on span tables for wall panels
- technical drawing hipertec wall sound (pdf)
